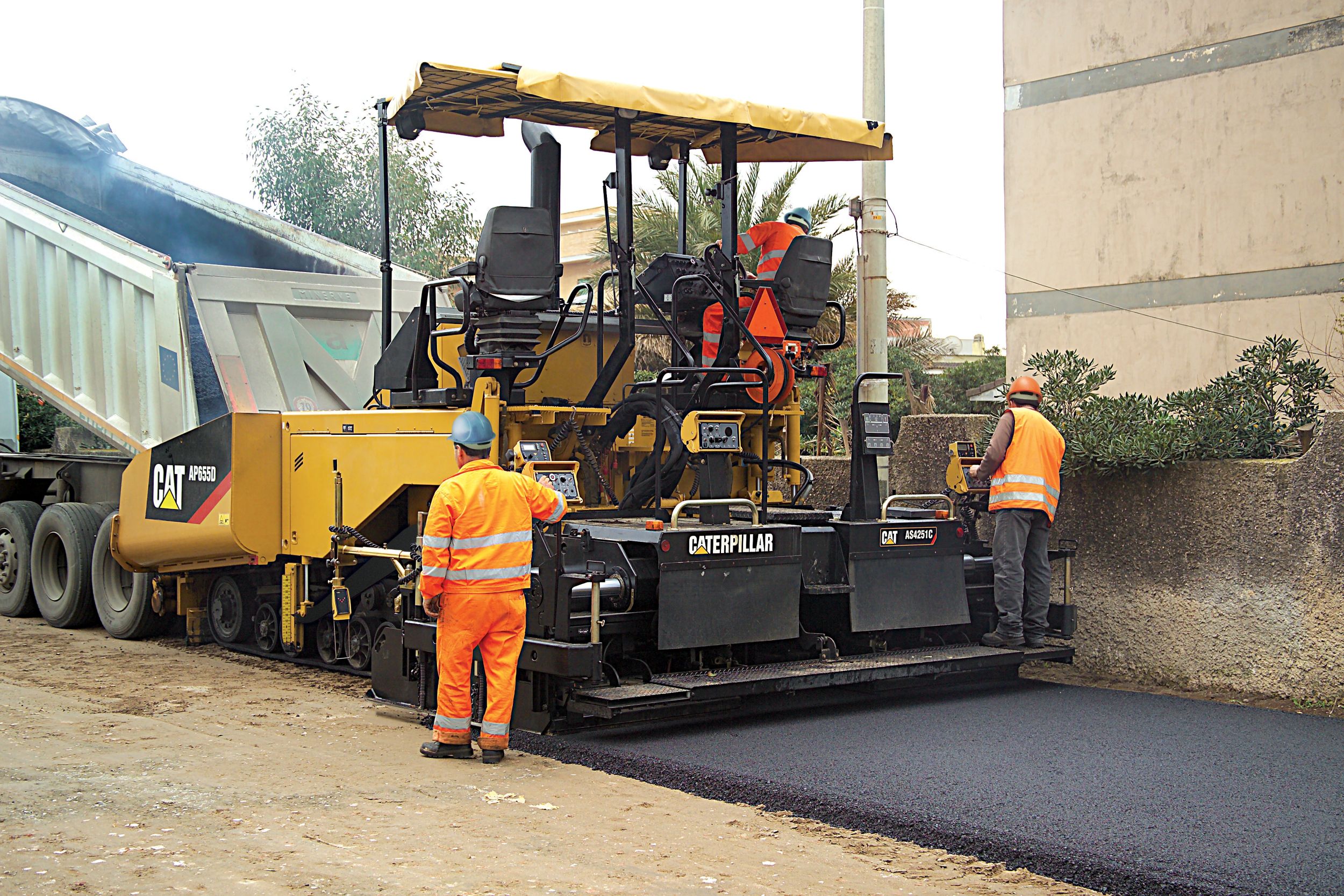

AS4251C SCREED
AS4251C double width hydraulic power extendible screed provides even material flow and unparalleled stability that result in smooth, high quality mats.
SPECIFICATIONS
Weight with Electric Heat3730.0 kg
Weight with LPG Heat3840.0 kg
Standard Paving Width Range2.55-5 m (8.3-16.3 ft)
BENEFITS AND FEATURES
as4251c screed
The screed is available with variable frequency tamper and vibrators and with LPG or ...
LEARN MORE
lpg heating system
The system provides high efficiency burners and optimum thermostatic temperature control.
LEARN MOREweights
Weight with Electric Heat3730.0 kg
Weight with LPG Heat3840.0 kg
operating specifications
Standard Paving Width Range2.55-5 m (8.3-16.3 ft)
Maximum Paving Width8.0 m
Crown Adjustment+5% to –3%
Heating SystemElectric, LPG
Maximum Tamper Frequency1700 rpm
Maximum Vibrator Frequency3000 vpm
Minimum Paving Width2.55 m
dimensions
Height1.9 m
Length, Front to Back, Endgates Attached2.27 m
Length, Front to Back, Endgates Removed1.52 m
Minimum Width, Endgates Attached2.73 m
Minimum Width, Endgates Removed2.55 m
Screed Plates Thickness15.0 mm
Screed Plates Width, Front to Back, Extenders400.0 mm
Screed Plates Width, Front to Back, Main Screed400.0 mm
specifications
Extender MountingRear-mounted
Screed TypeTamper Bar
BENEFITS AND FEATURES
AS4251C SCREED
The screed is available with variable frequency tamper and vibrators and with LPG or ...
LEARN MORE
LPG HEATING SYSTEM
The system provides high efficiency burners and optimum thermostatic temperature control.
LEARN MOREMOTEUR
The screed is available with variable frequency tamper and vibrators and with LPG or electric heating system. The screed control panels include material feeding controls for easy ground crew usage.
BENEFITS AND FEATURES
Automatically operated when the paver advances following a preset ramp. Tamper starting and stopping ramps are adjustable in order to maintain an optimum mat finish. The AS4251C screed is equipped with electronic ignition, automatic and independent adjustment of the smoothing plate temperature for central and each mobil plate.
BENEFITS AND FEATURES
The system provides high efficiency burners and optimum thermostatic temperature control.
BENEFITS AND FEATURES
The system provides a tractor-mounted generator, replaceable heating elements and operator friendly controls providing a cleaner environment. Feature
